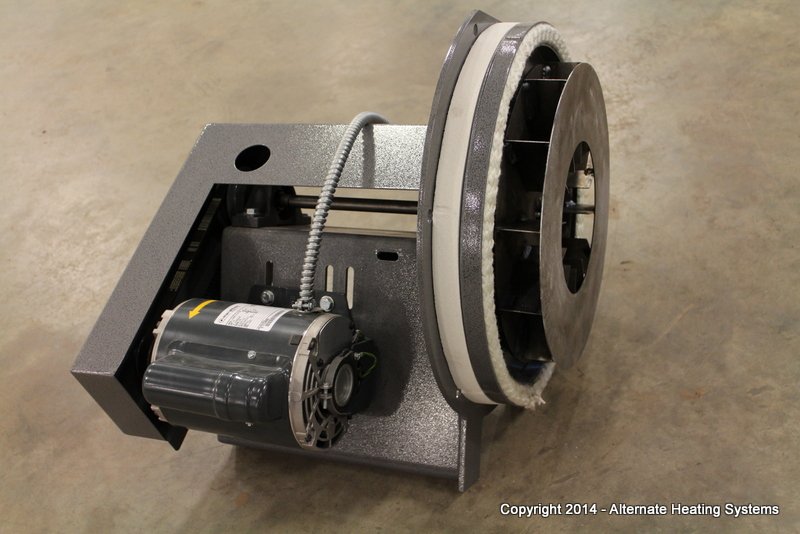

313-017 FAN ASSEMBLY S260/E250
The Complete Belt Drive Fan Assembly for the S260/E250 contains the following items, plus miscellaneous hardware:
- Fan Cover (large subassembly to which everything is mounted), [313-013]
- Belt Drive Fan,S260 = [313-012]; E250 = [433-038]
- Abrasion Shield, [313-010]
- Belt Guard, [453-041]
- Shaft, [312-075]
- Heat Shield, [422-135]
- Pillow Block Bearing, Qty 2, [200-488D]
- Fan Motor, [200-483A]
- Shaft Pulley, [200-319]
- Motor Pulley, [200-319]
- Belt, 200-327
Category
Wood Gun Parts, Fan & Fan Parts, Coal Gun Parts, Fan & Fan Parts, Parts & Options
Shipping Weight
75lbs
